Installation of Globus Toolkit 4.0.8 on Scientific Linux 5.5 running virtually within VMware on openSUSE 11.1 ¶

In order to run Globus Toolkit in a virtual machine you need:

A host (here: ursaminor, 129.206.110.201)
A basic operating system (here: openSUSE 11.1)
A virtualizer (here: VMware)
An operation system on the virtual machine (here: Scientific Linux 5.5)
A Globus Toolkit installation (here: Globus Toolkit 4.0.8)
A personal User Certificate

Installation of openSUSE 11.1 ¶

Download openSUSE 11.1 (decide and retain 32 or 64 bit)
Install openSUSE 11.1
- Use default settings
- Choose KDE 3 as desktop
Use Yast ("System" → "Date and Time") to synchronize with NTP Server (here: 129.206.110.100)

Hint: There is VMware support up to Linux Kernel 2.6.38. Hence openSUSE 11.1 (2.6.27), openSUSE 11.2 (2.6.31), openSUSE 11.3 (2.6.34) and openSUSE 11.4 (2.6.37), but not openSUSE 12.1 (3.x)!

Installation of VMware ¶

Download ¶

Download VMware Server
- Free of charge
- You have to register
- You get a registration code
Download VMware Player
Download vmware-server-2.0.x-kernel-2.6.3x-install.sh

Install ¶

Use the install script as described by Radu Cotescu to install VMware Server
- Use default settings
- You need the registration code for the VMware Server
Install VMware Player

Installation of Scientific Linux 5.5 ¶

Download ¶

Download Scientific Linux 5.5 Install DVD (32 or 64 bit)

Install ¶

Run VMware Player
- Make settings according to Deliverable 5.1 p. 21 et seqq.
Install Scientific Linux from image
- Make settings according to Deliverable 5.1 p. 28 et seqq.

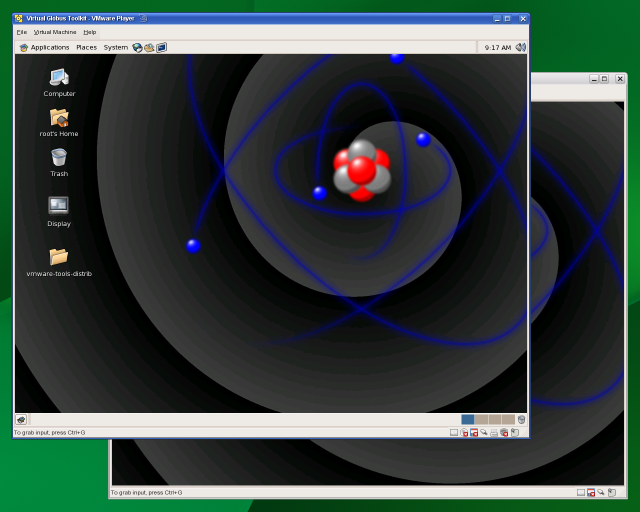

Improve VMware Player
- Update (automatic reminder while starting VMware Player)
- Install VMware tools (start from menu while virtual machine is running, see Deliverable 5.1 p. 46 et seqq.)

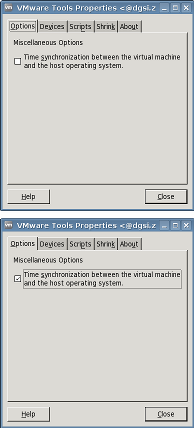

- Synchronize virtual machine time with host time
  - vmware-toolbox
  - Check "Time synchronization between the virtual machine and the host operating system"
  - "Close"

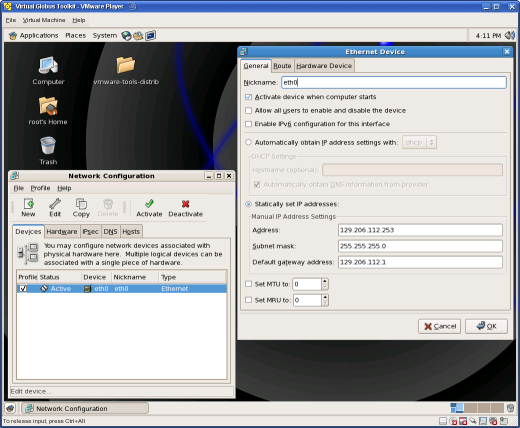

Make network connection to virtual machine (here: 129.206.112.253 respectively dgsi.zah.uni-heidelberg.de)
- Ask your system administrator (here: Dr. Peter Schwekendiek)

Virtual_Globus_Toolkit_A.tar.bz2¹

Setup of Globus Toolkit 4.0.8 ¶

Setup of Globus Toolkit 4.0.8

Virtual_Globus_Toolkit_B.tar.bz2¹

Setting up Globus Toolkit 4.0.8 Security Infrastructure �

Setting up Globus Toolkit 4.0.8 Security Infrastructure

Virtual_Globus_Toolkit_C.tar.bz2¹

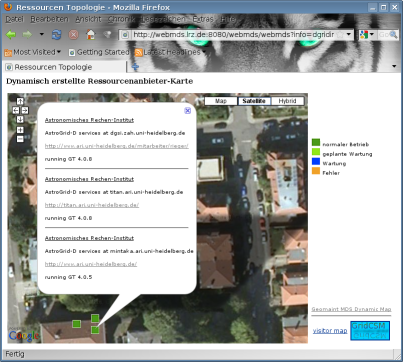

Setup of Information Provider MDS4 and GeoMaint

Virtual_Globus_Toolkit_D.tar.bz2¹

Check Installation ¶

gsissh dgsi.zah.uni-heidelberg.de

Submit Tests ¶

Try globusrun-ws -submit ... dgsi.zah.uni-heidelberg.de ... with other hosts, too, for the following three tests:

Basic ¶

globusrun-ws -submit -s -F dgsi.zah.uni-heidelberg.de -so out -se err -c /bin/date

Delegating user credentials...Done.
Submitting job...Done.
Job ID: uuid:cd291162-4b35-11e1-96d7-000c296d7bcb
Termination time: 01/31/2012 11:30 GMT
Current job state: CleanUp-Hold
Current job state: CleanUp
Current job state: Done
Destroying job...Done.
Cleaning up any delegated credentials...Done.

more err
more out
```
Mon Jan 30 12:30:25 CET 2012
```
rm err
rm out

Simple ¶

vi simple.xml

Edit (i)

<job>
  <executable>/bin/date</executable>
</job>

Save (ESC :wq)

globusrun-ws -submit -s -F dgsi.zah.uni-heidelberg.de -job-description-file simple.xml

Delegating user credentials...Done.
Submitting job...Done.
Job ID: uuid:fdc54d9e-4b36-11e1-8057-000c296d7bcb
Termination time: 01/31/2012 11:38 GMT
Current job state: Active
Current job state: CleanUp-Hold
Mon Jan 30 12:38:56 CET 2012
Current job state: CleanUp
Current job state: Done
Destroying job...Done.
Cleaning up any delegated credentials...Done.

Hint: Output of /bin/date is "Mon Jan 30 12:38:56 CET 2012"!

Complex ¶

vi program.sh

Edit (i)

echo "This is the output of program.sh!"

Save (ESC :wq)

chmod +x program.sh

vi complex.xml

Edit (i)

<job>

  <executable>/bin/bash</executable>
  <argument>programme.sh</argument>
  <stdout>${GLOBUS_USER_HOME}/output</stdout>
  <stderr>${GLOBUS_USER_HOME}/errors</stderr>

  <fileStageIn>
    <transfer>
      <sourceUrl>gsiftp://dgsi.zah.uni-heidelberg.de/home/agrid/agrid107/program.sh</sourceUrl>
      <destinationUrl>file:///${GLOBUS_USER_HOME}/programme.sh</destinationUrl>
    </transfer>
  </fileStageIn>

  <fileStageOut>
    <transfer>
      <sourceUrl>file:///${GLOBUS_USER_HOME}/output</sourceUrl>
      <destinationUrl>gsiftp://dgsi.zah.uni-heidelberg.de/home/agrid/agrid107/out</destinationUrl>
    </transfer>
    <transfer>
      <sourceUrl>file:///${GLOBUS_USER_HOME}/errors</sourceUrl>
      <destinationUrl>gsiftp://dgsi.zah.uni-heidelberg.de/home/agrid/agrid107/err</destinationUrl>
    </transfer>
  </fileStageOut>

  <fileCleanUp>
    <deletion>
      <file>file:///${GLOBUS_USER_HOME}/output</file>
    </deletion>
    <deletion>
      <file>file:///${GLOBUS_USER_HOME}/errors</file>
    </deletion>
    <deletion>
      <file>file:///${GLOBUS_USER_HOME}/programme.sh</file>
    </deletion>
  </fileCleanUp>

</job>

Save (ESC :wq)

globusrun-ws -submit -S -F dgsi.zah.uni-heidelberg.de -f complex.xml

Delegating user credentials...Done.
Submitting job...Done.
Job ID: uuid:1b5e3ac8-4b41-11e1-bc46-000c296d7bcb
Termination time: 01/31/2012 12:51 GMT
Current job state: StageIn
Current job state: Active
Current job state: StageOut
Current job state: CleanUp
Current job state: Done
Destroying job...Done.
Cleaning up any delegated credentials...Done.

ls -l

total 712
-rw-r--r-- 1 agrid107 agrid   1140 Jan 30 13:48 complex.xml
-rw-r--r-- 1 agrid107 agrid      0 Jan 30 13:51 err
-rw-r--r-- 1 agrid107 agrid     34 Jan 30 13:51 out
-rwxr-xr-x 1 agrid107 agrid     41 Jan 30 13:51 program.sh
-rw-r--r-- 1 agrid107 agrid     50 Jan 30 12:38 simple.xml

more err
more out
```
This is the output of program.sh!
```
rm err
rm out

RFT Test ¶

cp $GLOBUS_LOCATION/share/globus_wsrf_rft_test/transfer.xfr /tmp

vi /tmp/transfer.xfr

Edit (i)

true
16000
16000
false
1
true
1
null
null
false
10
gsiftp://dgsi.zah.uni-heidelberg.de:2811/tmp/rftTest.tmp
gsiftp://dgsi.zah.uni-heidelberg.de:2811/tmp/rftTest_Done.tmp

Save (ESC :wq)

touch /tmp/rftTest.tmp

rft -h dgsi.zah.uni-heidelberg.de -f /tmp/transfer.xfr

Number of transfers in this request: 1
Subscribed for overall status
Termination time to set: 60 minutes

 Overall status of transfer:
Finished/Active/Failed/Retrying/Pending
1/0/0/0/0

 Overall status of transfer:
Finished/Active/Failed/Retrying/Pending
0/1/0/0/0
All Transfers are completed

Gatekeeper Test ¶

globus-personal-gatekeeper -start

GRAM contact: dgsi.zah.uni-heidelberg.de:40276:/C=DE/O=GermanGrid/OU=ZAH/CN=Klaus Rieger

In the following line take the number you got before:

globus-job-run "dgsi.zah.uni-heidelberg.de:40276:/C=DE/O=GermanGrid/OU=ZAH/CN=Klaus Rieger" /bin/hostname
```
dgsi.zah.uni-heidelberg.de
```

globus-personal-gatekeeper -killall

killing gatekeeper: "dgsi.zah.uni-heidelberg.de:40276:/C=DE/O=GermanGrid/OU=ZAH/CN=Klaus Rieger"

Webservice Test ¶

counter-client -s https://dgsi.zah.uni-heidelberg.de:8443/wsrf/services/CounterService
```
Got notification with value: 3
Counter has value: 3
```

Documentation ¶

The following guide is available:

Deliverable 5.1 p. 50 below et seqq.

Virtual Machine ¶

Add Shared Folder:

"Virtual Machine" → "Virtual Machine Settings"
- "Options" → "Shared Folders"
  - Check "Always enabled"
  - "Add..."
    - Name: testbed_share
    - Host Path: /home/rieger/testbed_share
    - Checked: "Enabled"
    - Unchecked: "Read-only"
    - "OK"
- "Save"

Shutdown virtual machine:

"File" → "Suspend and Quit"

Add script to shared folder:

Get script generate_nodes.sh
scp generate_nodes.sh rieger@129.206.110.201:/home/rieger/generate_nodes.sh

Zip ¶

Update Zip ¶

To pack files bigger than 2 GB you need at least zip version 3.0! Therefore an update is necessary in case of openSUSE 11.1.

Get from download.opensuse.org/source/factory/repo/oss/suse/src/ the most recent version of:
- zip-3.0-7.3.src.rpm

Copy file to host ursaminor:

scp zip-3.0-7.3.src.rpm root@129.206.110.201:/root/

ssh root@129.206.110.201
rpmbuild --rebuild zip-3.0-7.3.src.rpm
cd /usr/src/packages/RPMS/i586/
ls
```
zip-3.0-7.3.i586.rpm
```
rpm -Uvh zip-3.0-7.3.i586.rpm
exit

Create Zip File ¶

ssh rieger@129.206.110.201
cd vmware/
ls
```
Virtual_Globus_Toolkit
```
zip -r fullblown.zip Virtual_Globus_Toolkit/

fullblown.zip¹

Automated generation of Virtual Machines ¶

Shared Folder ¶

cd ~
mkdir testbed_share

ls

Desktop  Documents  generate_nodes.sh  testbed_share  vmware

mv generate_nodes.sh testbed_share/
mv vmware/Virtual_Globus_Toolkit_C/ testbed_share/
exit

Run Script on Virtual Machine ¶

Restart virtual machine, then proceed:

ssh globus@dgsi.zah.uni-heidelberg.de
cd /mnt/hgfs/testbed_share/

ls

generate_nodes.sh  Virtual_Globus_Toolkit_C

vi generate_nodes.sh

Search "VM_FULL=" (?VM_FULL=)

Change (i)

...
VM_FULL=/root/fullblown  #your prepared reference "full-blown" VM is to be found here
DEST_DIR=/root/dgsi      #will be created. If exist, will be deleted first.
...

...
VM_FULL=/mnt/hgfs/testbed_share/Virtual_Globus_Toolkit_C  #your prepared reference "full-blown" VM is to be found here
DEST_DIR=/mnt/hgfs/testbed_share/dgsi                     #will be created. If exist, will be deleted first.
...

Save (ESC :wq)

su
chmod +x generate_nodes.sh

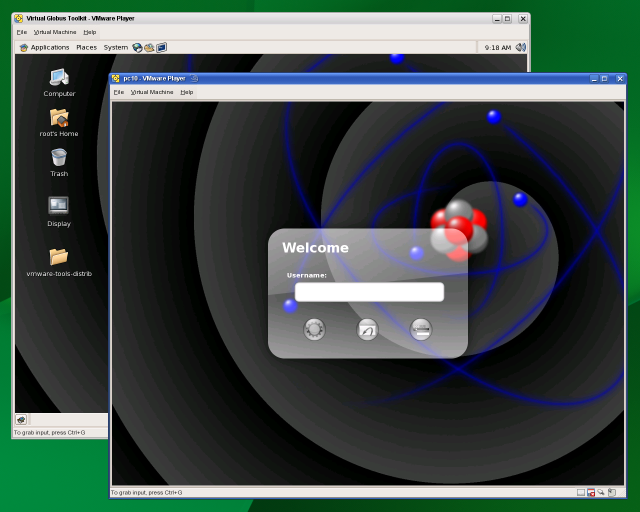

./generate_nodes.sh

Creating nodes for location pc, subnet 192.168.190.0
Creating node pc10
...
Starting virtual machine pc10
...

1) available at medigrid-srv.gwdg.de/data/DGSI/publicshare/VMware_Image_GT408/
